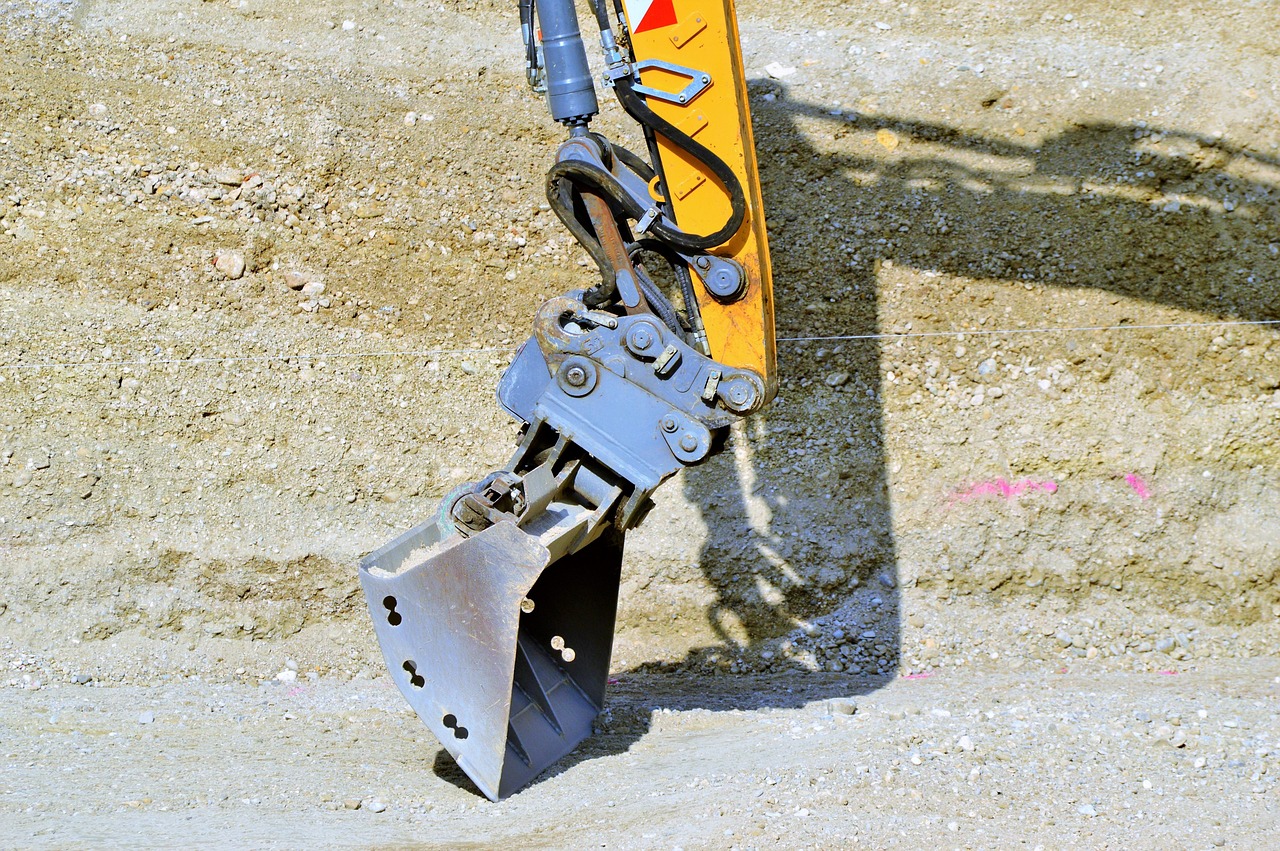

Land excavation and site grading in Waco, TX

Material Matters

A closer look at the fill, base, and materials that make a site build ready.

How to Choose the Right Fill for a Waco Site

July 1, 2026

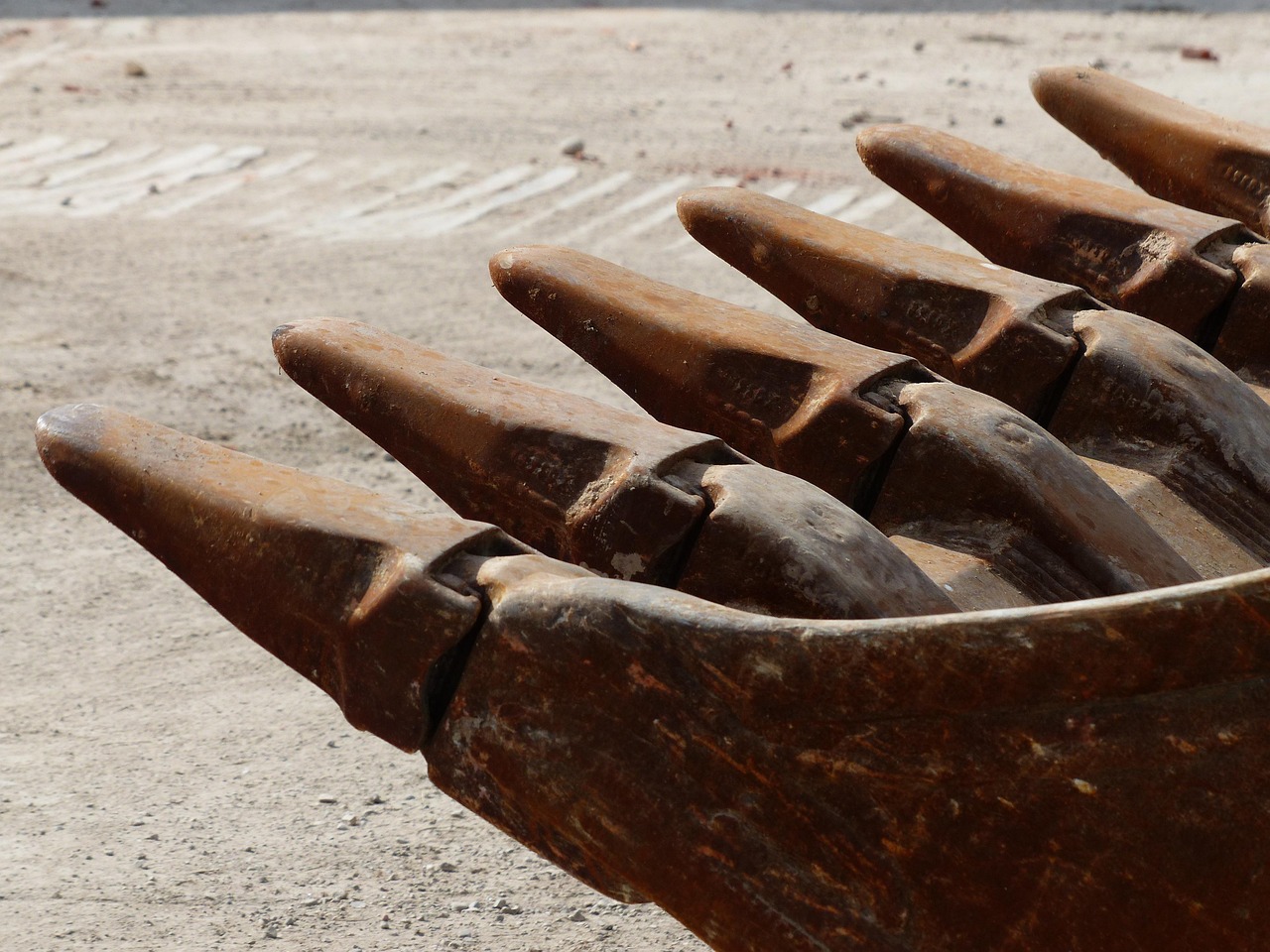

Loads of fill dirt and crushed aggregate on a Waco site

The word “dirt” hides a lot of important differences. Order the wrong material for a pad or a driveway and you pay for it later in cracks, ruts, and settling. Here is how to think about the fill and base that go into a Waco site, and why the placement matters as much as the material.

Fill Dirt Is for Volume, Not Load

Fill dirt is subsoil with the organics screened out. It is the cheap workhorse for raising grade, filling a low spot, or backfilling a void where nothing structural sits on top. What it is not is a base for a slab. Fill dirt is not graded or clean enough to compact to a reliable density, so it belongs under a lawn or a berm, not under a foundation.

Structural Fill Is for Anything That Carries Weight

When something has to bear load, a pad, a footing, or backfill against a wall, you want structural fill. It is cleaner, better graded material that compacts to a set density and stays put. On Waco’s expansive clay this is the difference maker, because the clay heaves with moisture and a properly filled and compacted pad rides above that movement. Our structural fill and compaction work is built around placing it in lifts and testing every layer.

Aggregate Base Is for Driving On

A gravel driveway or road needs crushed aggregate base, a blend of angular stone and fines that locks together under compaction and drains well. Round pea gravel scatters and never firms up. Crushed base, placed over geotextile fabric and a compacted subgrade, is what keeps a drive from rutting after a storm.

Placement Beats Product

Even the right material fails if it is dumped in one deep pile. Fill has to go down in six to eight inch lifts, each one compacted before the next, so the whole depth reaches density. Most Waco site work targets 95 percent of maximum dry density from a Proctor test, and a nuclear gauge confirms it. That number is your insurance against a slab that moves.

Get the Ground Checked First

Before ordering a single load, have the site walked. Soil type, drainage, and how much the grade needs to change all decide which material and how much of it. A short look up front saves guesswork and reorders later.

Planning a build or fixing a pad that moved? Contact us or call Thehughesgallery at (254) 581-0087 for a free site walk in the Waco area.

Read the full article

Excavation Services That Put Materials to Work

One local crew for the dirt work behind a build, from a bare lot on Washington Avenue to a finished, compacted pad ready for concrete. Every service below is about placing the right material in the right way.

Site Preparation and Grading

Clearing, topsoil stripping, cut and fill, and rough to finish grading that shapes a raw lot to the engineer's plan, with pad elevations and drainage slopes set before the first footing.

Structural Fill and Compaction

Engineered fill placed in controlled lifts and compacted to 95 percent density, then confirmed with a Proctor test and nuclear gauge for pads, backfill, and load-bearing subgrade.

Driveway and Road Base Prep

Subgrade compaction, geotextile separation fabric, and crushed aggregate base built up to a stable, well-draining gravel driveway or a paving-ready subbase.

Land Clearing and Grubbing

Trees, brush, and undergrowth removed, then stumps and roots grubbed out below the surface and hauled off, opening a wooded or overgrown Waco lot for construction.

Foundation and Basement Excavation

Footings, crawl spaces, and full basement digs cut to plan depth and dimension, with spoil managed and a compacted, level bearing surface left for the slab.

Drainage and Erosion Control

Positive grading away from structures, swales and French drains, plus silt fence, inlet protection, and blankets to meet stormwater (NPDES and SWPPP) requirements.

Delivery and Dig Zones We Serve

We haul fill and run equipment throughout Waco and the surrounding McLennan County communities, from the older neighborhoods near Austin Avenue to the growing edges of town and the small towns just past the city line.

Not sure we reach your lot? Call (254) 581-0087 and we will tell you straight.

Waco, TX (76707, 76710, 76711)
Woodway, TX
Hewitt, TX
Robinson, TX
China Spring, TX
McGregor, TX

Fill and Grading Material Questions

What is the difference between fill dirt and structural fill?

Fill dirt is screened subsoil used to raise grade or backfill voids where looks and load do not matter. Structural fill is cleaner, graded material that compacts to a set density, so it goes under pads, footings, and slabs. Using fill dirt where structural fill belongs is how a slab ends up cracking.

What does 95 percent compaction mean and why does it matter?

It means the fill is packed to 95 percent of its maximum dry density, the target set by a Proctor test (ASTM D698 or D1557). At that density the material stops settling and can carry the load above it. We confirm the number with a nuclear density gauge rather than eyeballing it.

How much does it cost to grade and fill my lot?

Grading commonly runs $0.40 to $2.00 per square foot, and imported structural fill runs $50 to $200 per cubic yard placed and compacted. Haul distance, material type, and density testing move the total. We walk the site off a road like New Road or Bagby Avenue and put a firm price in writing.

What kind of base does a gravel driveway need?

A stable driveway starts with a compacted subgrade, then geotextile separation fabric so the stone does not sink into the soil, then a crushed aggregate base built up and compacted. That layered base is what keeps a Waco drive from rutting and holding water after a storm.

Do you call 811 before digging?

Always. We place an 811 locate request before any excavation, typically two business days ahead, so the gas, water, electric, and communication lines are marked. Digging blind off Franklin Avenue or anywhere else is not worth the risk to your property or the crew.

Can you build a stable pad on Waco clay soil?

Yes. The expansive clay common around Waco swells and shrinks with moisture, so we strip the organics, bring in engineered fill, and compact it in lifts to a tested density. Proper material and compaction are what let a pad on that clay stay put through the seasons.

What is compaction in lifts?

Instead of dumping fill in one deep pile, we place it in thin layers, usually six to eight inches, and compact each layer before adding the next. A plate compactor or sheepsfoot roller reaches the whole depth that way. Loose, unlifted fill keeps settling for years.

Do you handle drainage and erosion control?

Yes. We grade positive slopes away from structures, cut swales, and set French drains where water pools, then hold soil with silt fence, inlet protection, and blankets. On larger sites that also keeps the job inside its NPDES stormwater permit and SWPPP.

Do you serve my area?

We cover Waco ZIP codes including 76707, 76710, and 76711, plus Woodway, Hewitt, Robinson, China Spring, and McGregor across McLennan County. Call (254) 581-0087 and we will confirm we reach your lot.

The right fill for the loadFill dirt to raise grade, engineered structural fill under pads, crushed aggregate under drives. We match the material to the job, not the other way around.

Compaction you can verifyFill placed in six to eight inch lifts and tested to 95 percent density with a nuclear gauge, so the base actually holds.

811 before we digEvery job opens with a utility locate and a hard look at drainage, so nothing gets nicked and water runs the right way off the pad.

Local ground, local crewWe know how Waco clay moves across McLennan County and grade for it, from Bosque Boulevard out toward China Spring.

Thehughesgallery provides land excavation in Waco, TX, and the work starts with the ground itself. We handle site preparation and grading, land clearing and grubbing, foundation and basement digs, utility trenching, drainage and erosion control, driveway and road base prep, and soil compaction with engineered structural fill. Getting the fill and base right is what separates a pad that holds from one that settles, and every load of fill dirt, crushed aggregate, and screened topsoil we place is chosen for the job in front of it. Crews work across McLennan County, from Cobbs Drive and Bosque Boulevard out to the newer builds near Valley Mills Drive.

Not all dirt is the same, and the label on the truck matters. Fill dirt is subsoil with the organics screened out, used to raise grade and backfill voids where looks do not matter. Structural fill is graded and clean enough to compact to a specified density, so it goes under pads, footings, and load-bearing slabs. Crushed aggregate base, a blend of angular stone and fines, locks together under a driveway or road and drains well. We match the material to the load it will carry, and we never bury topsoil or debris where a foundation has to sit. A pad off New Road built on the wrong fill can crack a slab within a year.

The base under any build is only as good as the compaction beneath it. We place fill in controlled lifts, usually six to eight inches at a time, and compact each layer before the next goes down. Standard Proctor and modified Proctor tests (ASTM D698 and ASTM D1557) set the target, and most site work in this area calls for 95 percent of maximum dry density. A nuclear density gauge confirms the number instead of leaving it to guesswork. Skip the lifts and a stack of loose fill on Herring Avenue will keep settling long after the concrete truck has left.

Waco soil is not uniform. Clay near the river bottoms swells and shrinks with the seasons, while the higher ground around Mountainview and Cedar Ridge drains differently. We grade positive slopes away from the structure, cut swales where water wants to pool, and hold erosion with silt fence and blankets to stay inside NPDES stormwater rules. Before any bucket touches the ground we call 811 for a utility locate, because a nicked gas line off Franklin Avenue is a bad day for everyone. That groundwork is why our pads and driveways still sit true years after we roll off the site.

Cost of Materials and Placement in Waco

Earthwork pricing turns on how much material moves, how far it hauls, and how tight the compaction spec is. Grading is usually priced by the square foot, imported structural fill by the cubic yard placed and compacted, and gravel base by the driveway area. The ranges below are typical for the Waco area, and we put a firm number in writing after a free site walk. Rock, poor access, or density testing can shift the total, and we say so up front.

Grading and lot leveling$0.40 to $2.00 per sq ft	Structural fill, placed and compacted$50 to $200 per cubic yard	Gravel driveway and road base$4 to $10 per sq ft
Cut and fill to plan grade Drainage slopes set Get a quote	Engineered fill in tested lifts 95 percent density to spec Get a quote	Geotextile fabric and aggregate Compacted, well-draining subbase Get a quote

Get a Materials and Earthwork Quote

Ready to move some dirt? We will walk your site, talk through the fill, base, and grading it needs, and hand you a clear written quote with no pressure. From a single pad to a full lot clear and driveway base, we place the right material and compact it to spec so what you build on stays put.
